Description

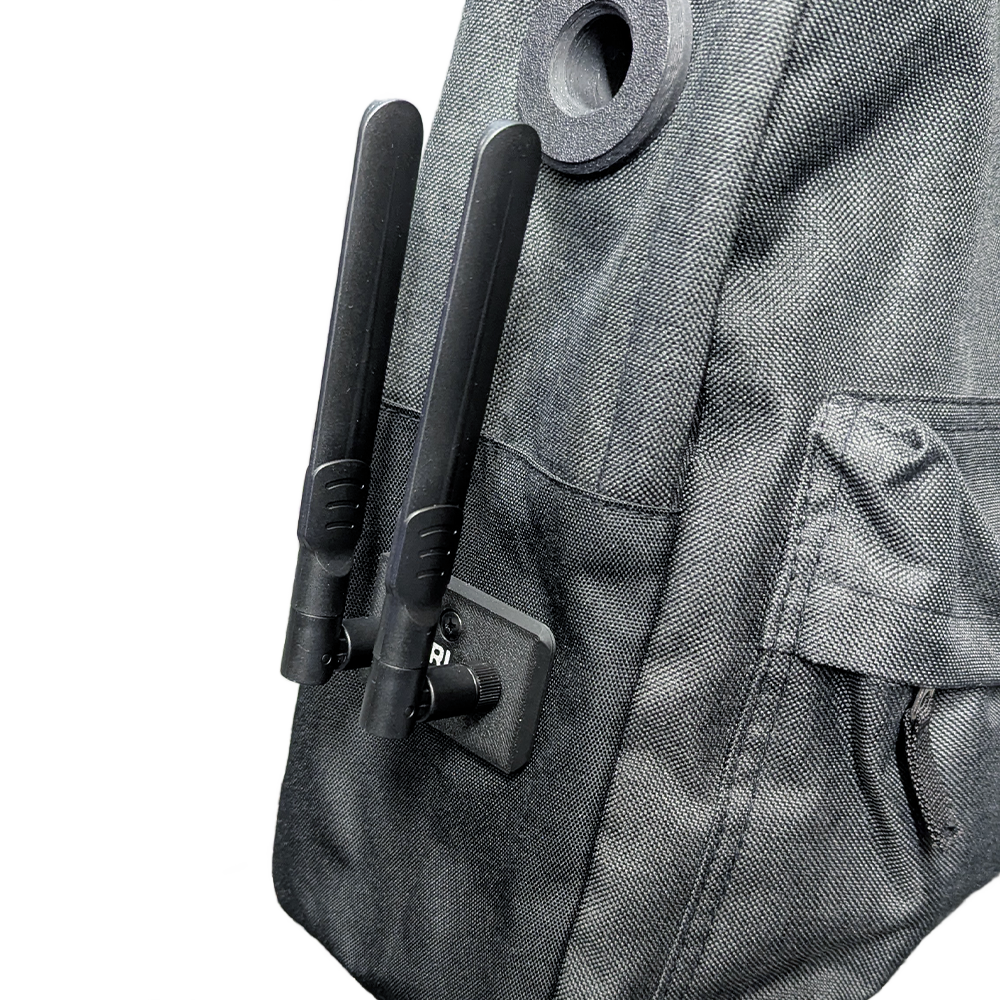

This SMA bag passthrough adaptor allows you to install antenna’s through a backpack wall similar to our Fan Mod options.

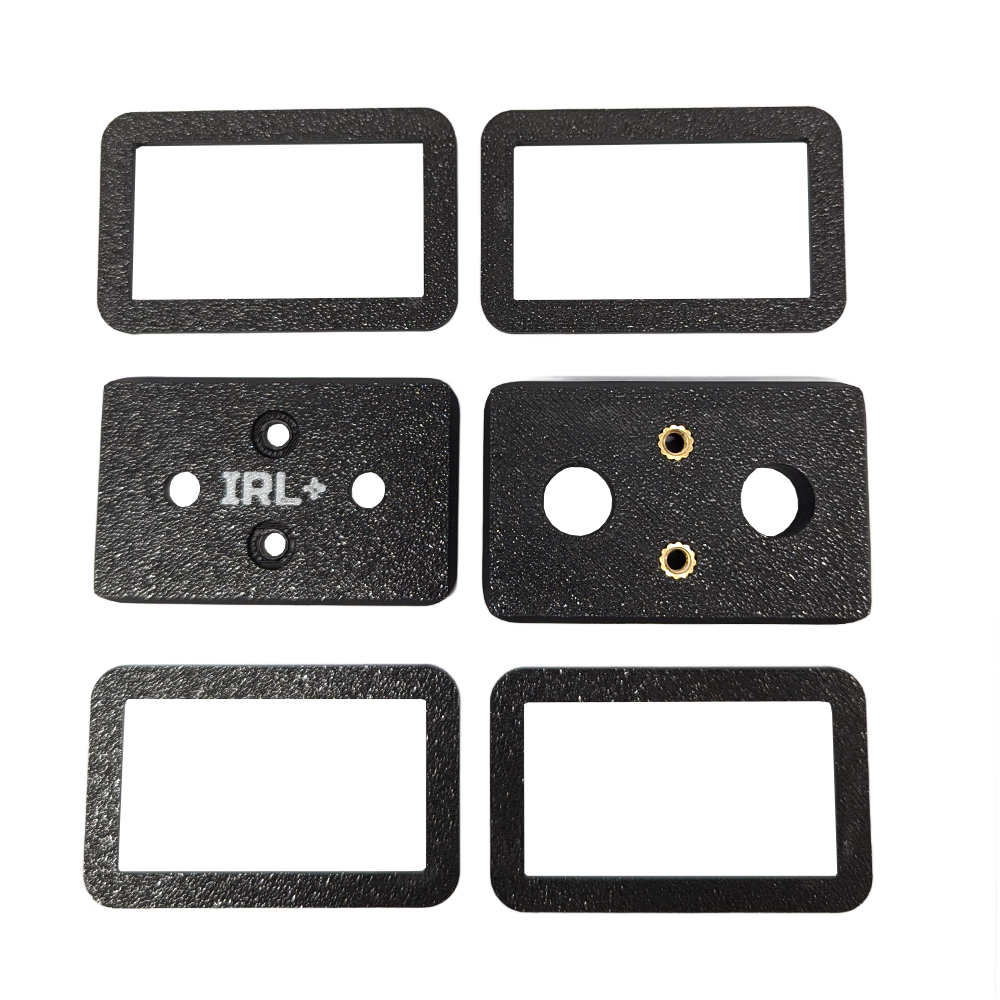

What’s Included/Features

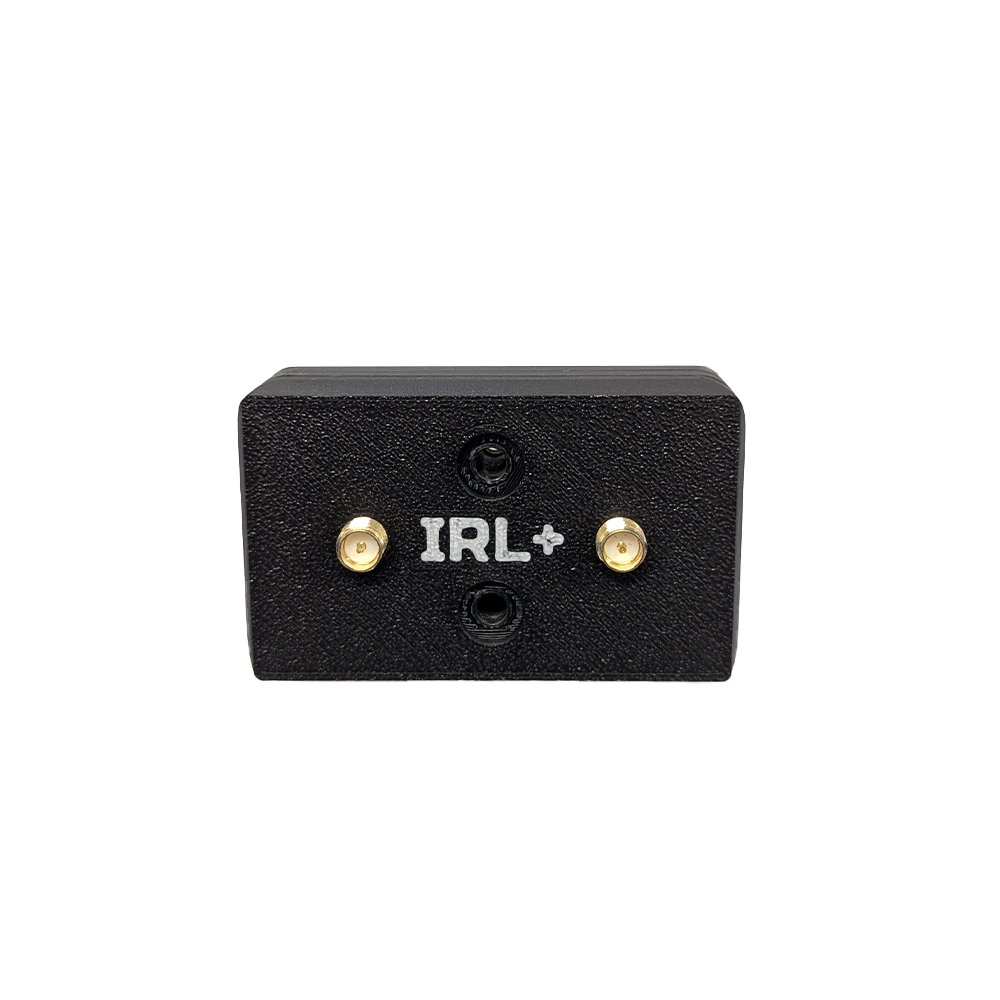

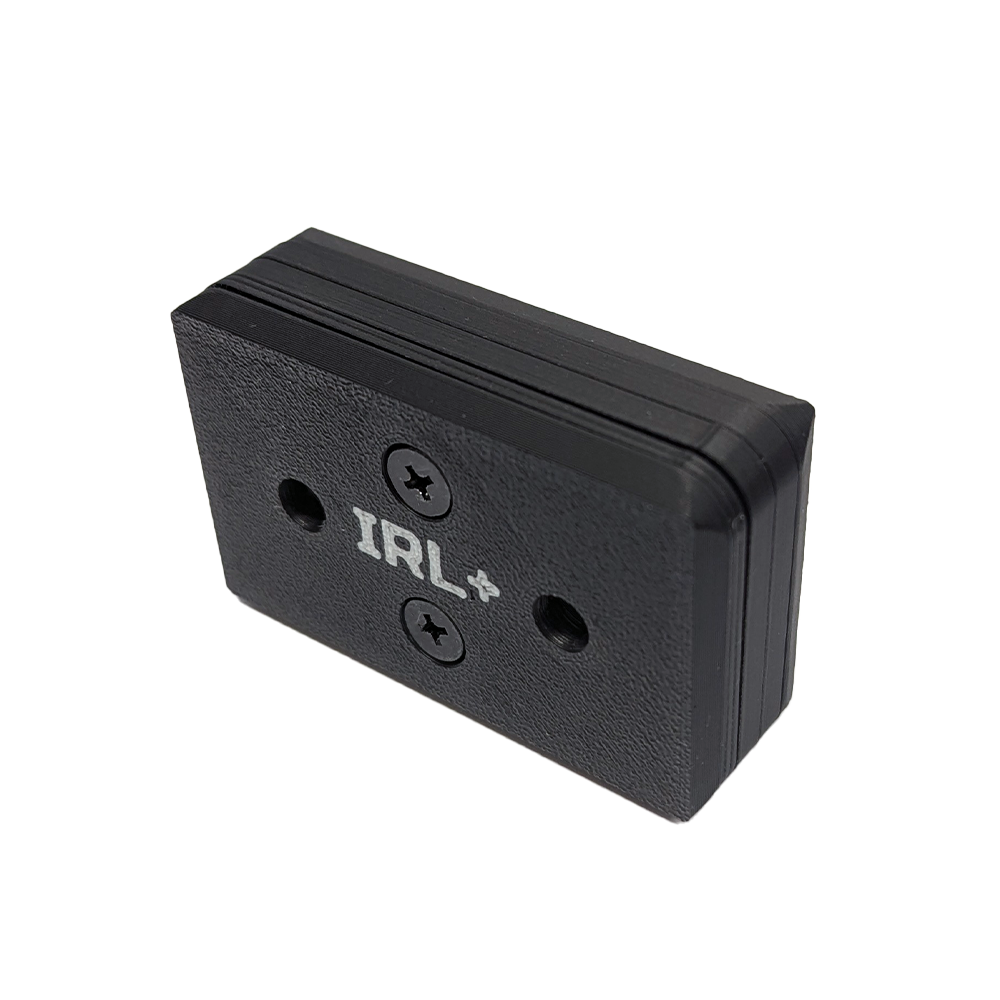

• x1 Front panel that allows a standard 6mm SMA to passthrough

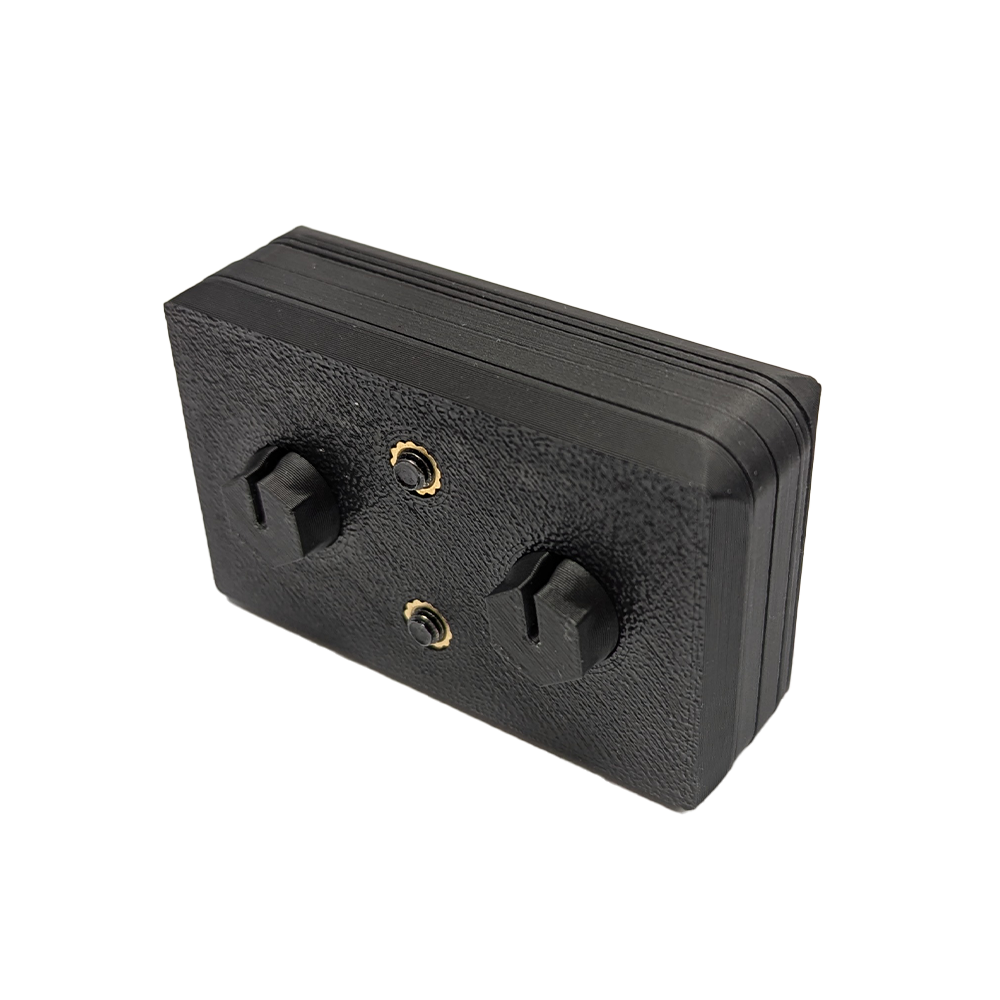

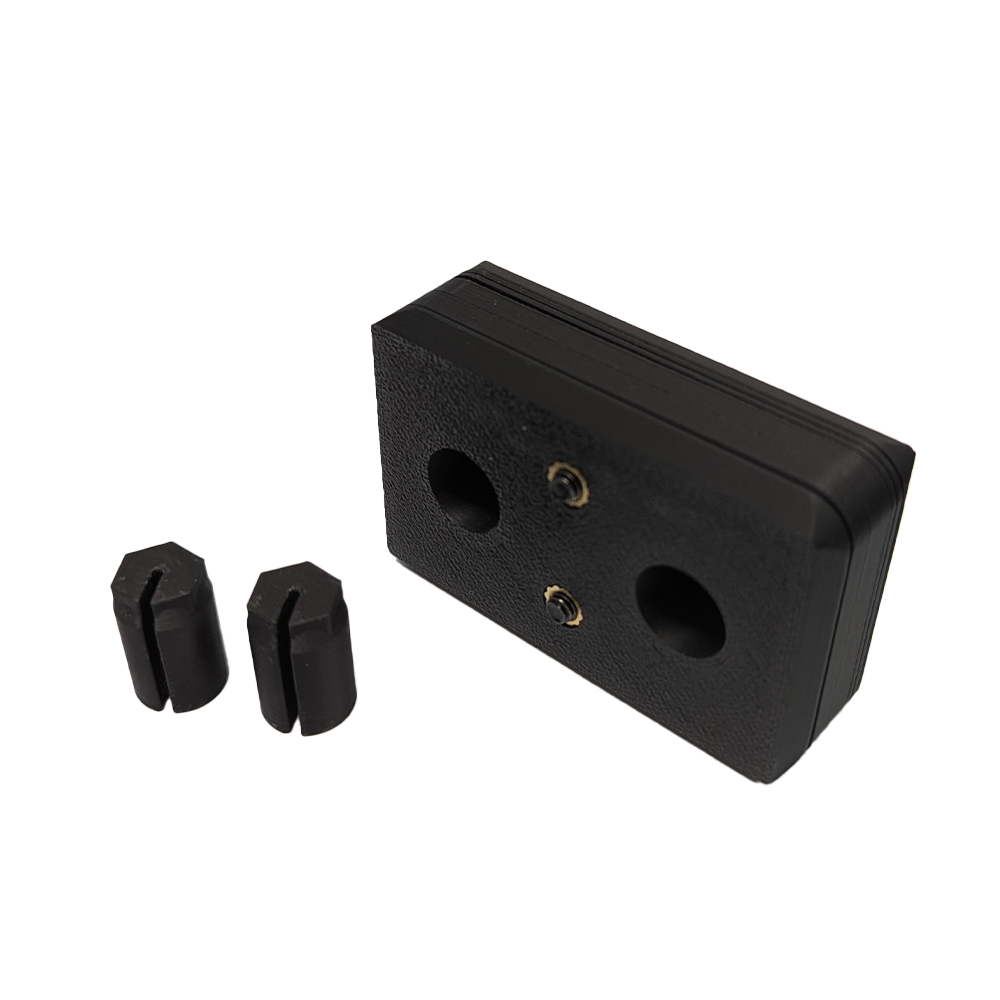

• x1 Rear Panel allowing up to 12mm SMA bolts as well as our cable protection caps
• x4 Spacers to cater for different backpack wall thicknesses

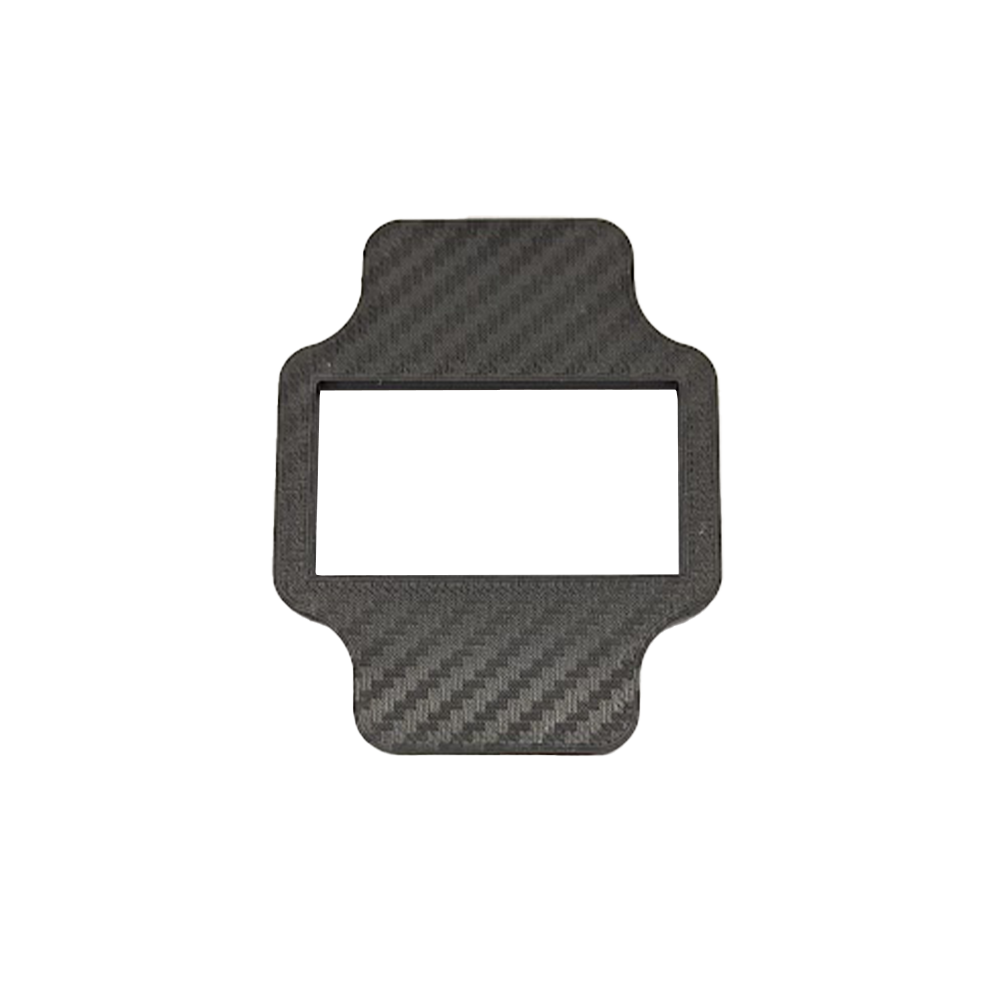

• x1 Tall Spacer to help keep the adaptor rigid on thinner backpacks (Place on the inside against the bag)
• x2 M3 bolts & embedded nuts

Installation Recommendation

• Fix your antenna’s onto the front panel
• Place or glue the 1mm spacer to the outside of your backpack at the desired location
• Cut around the inside of the spacer to form a hole in the backpack (craft knife recommended)
• Use the required spacers provided depending on your backpack wall thickness over the rear section

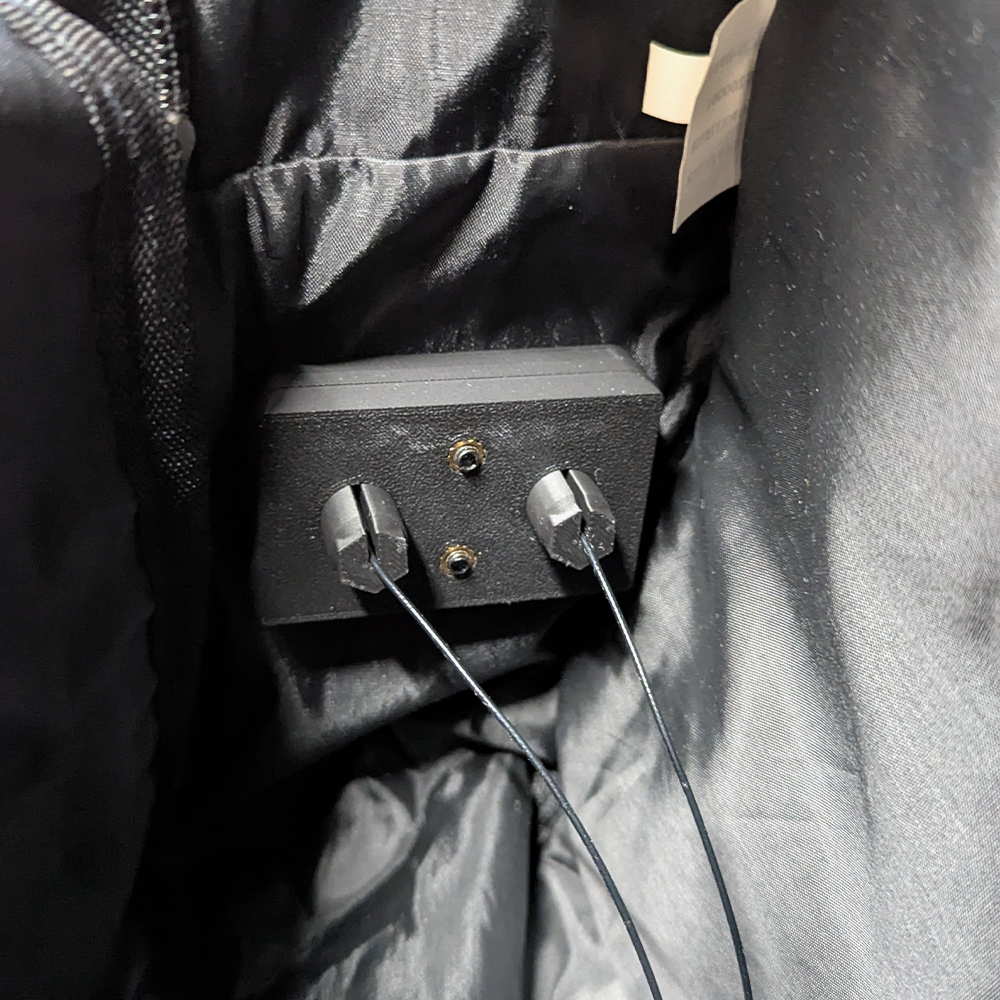

• Offer the rear section through the inside of the backpack wall and then screw on the front section to the outside

We’re always open to modifications. If you’d like something different, for example with 4 SMA’s or in a different shape, please ask us in Discord.

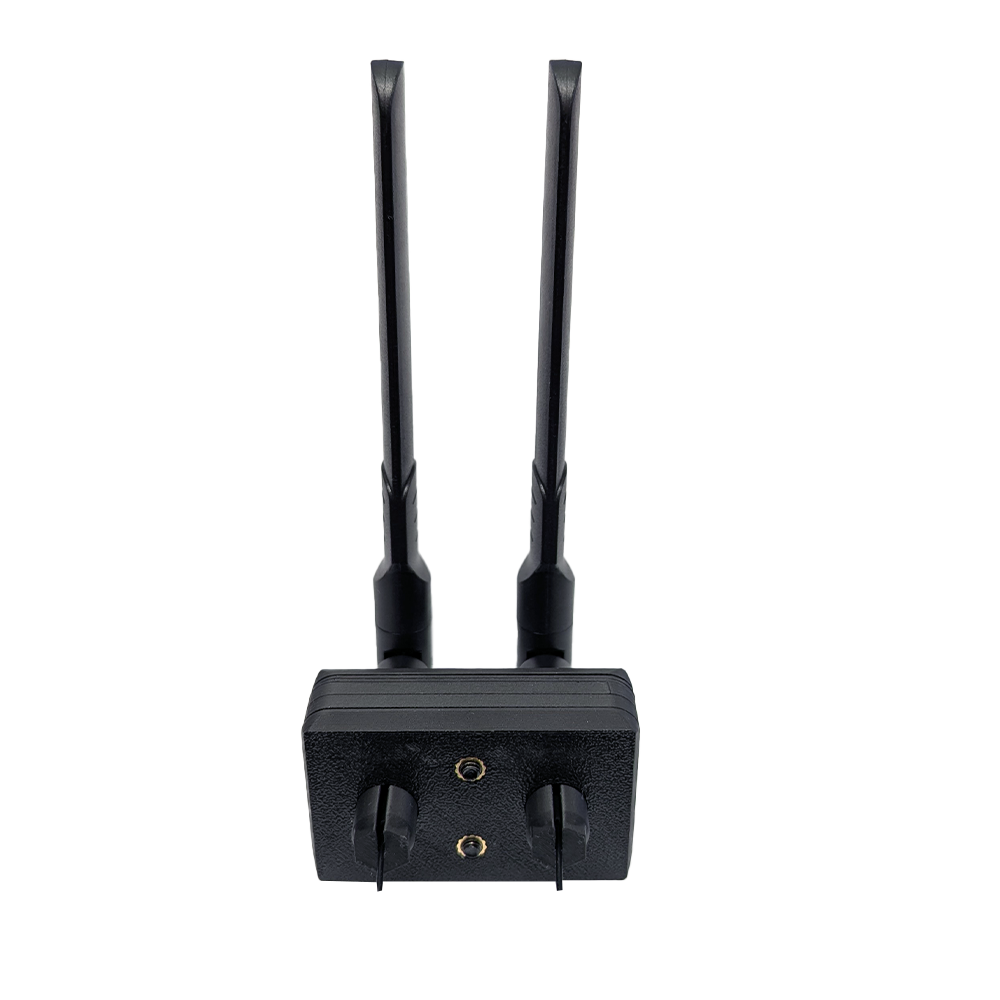

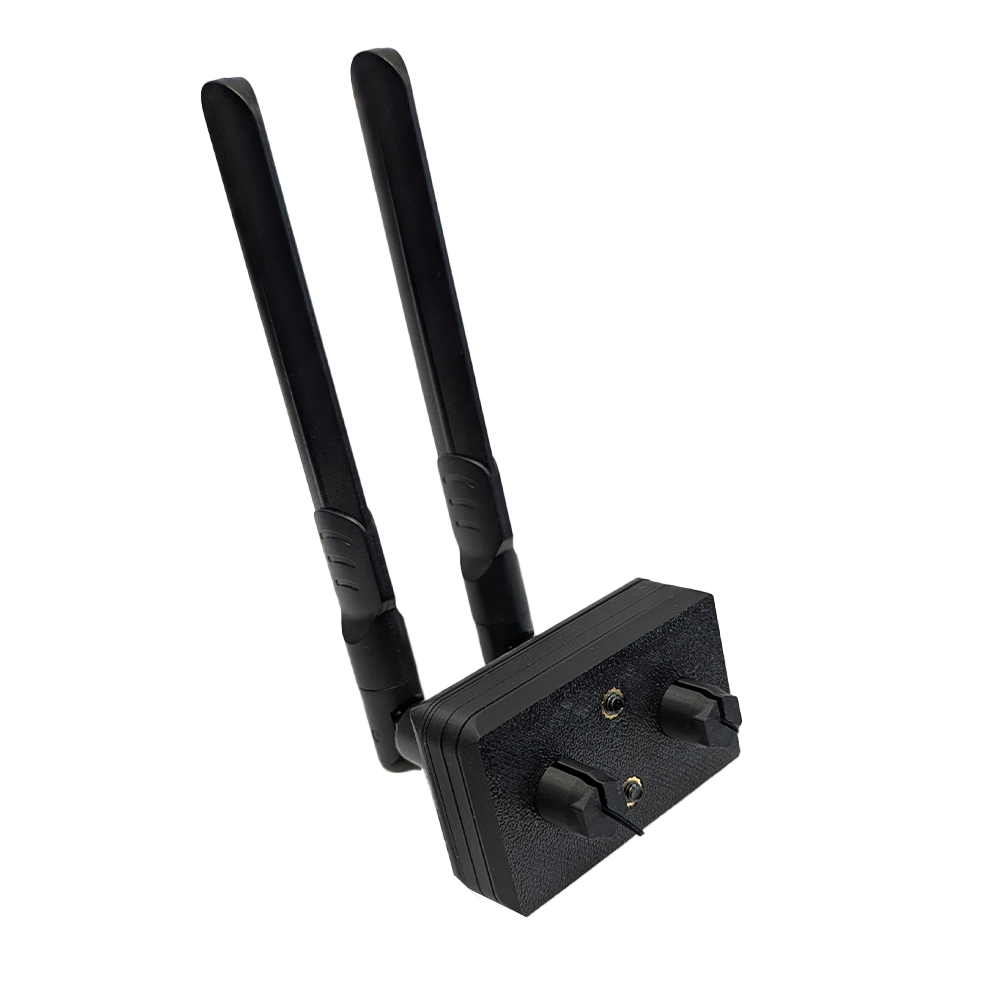

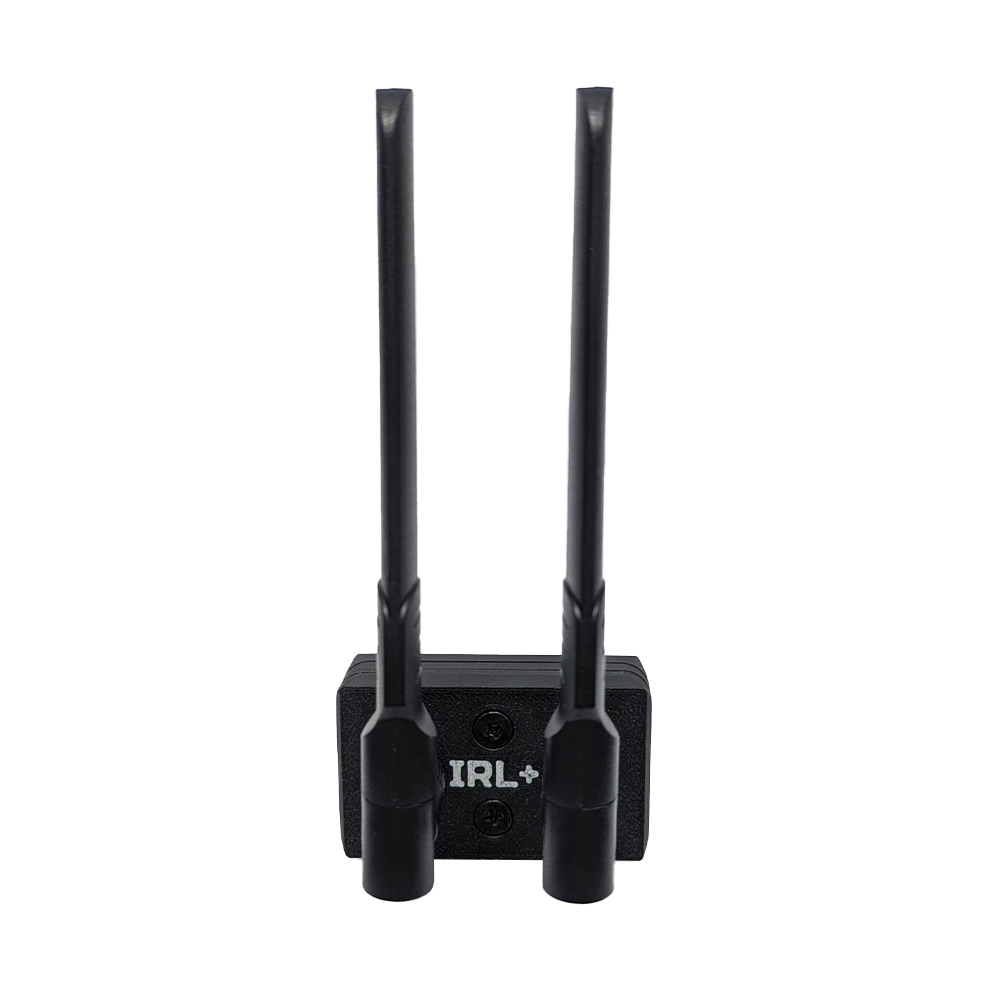

ANTENNAS AND SMA CONNECTIONS USED IN PHOTOS ARE FOR REFERENCE ONLY – NOT INCLUDED
